Rajsun Innovations LLP

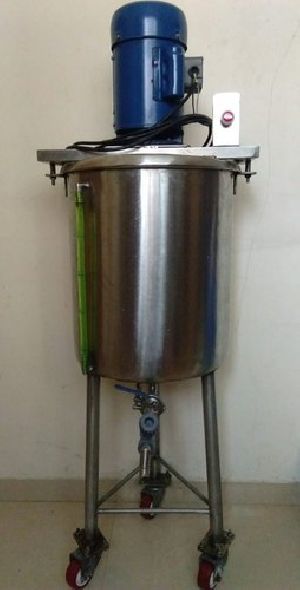

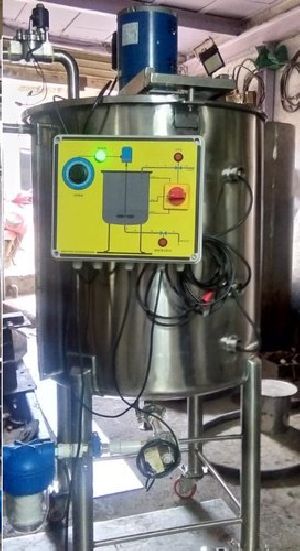

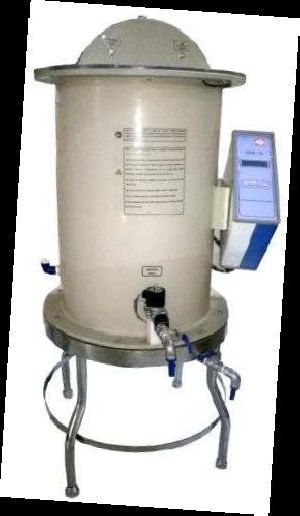

Bicarbonate Mixer

Bicarbonate Mixer
Price : 1.85 Lac / Piece(s)Get Best Price

MOQ : 1 Piece(s)

Business Type Exporter, Supplier, Trader
Tank 100 L PP Conical bottom tank
Stand Medical grade Stainless Steel SS 316 L/304
Motor DC Geared motor (24 V /45 RPM)
Click to view more

Preferred Buyer From

Location Worldwide

Product Details

Shaft
Delrin Frame Blade
Power Supply
230 V AC 50 Hz
Load
2 A
Weight
Approximately 30 Kg (when tank is empty)
Tank Dimension
OD-600 mm, ID- 500 mm, Height-700 mm
Stand Dimension
Height - 2 feet
Mixing time
User set limit
Filling Time
10 min for 100 L at flow rate of 10 L/min
Drain outlet
2 L/min
Solute Outlet
2 L/min
RO Water Inlet
1/2" with 10 L/min

Other Details:

  • Fully Automated 100 L Mixing system
  • Electronically controllable Filling, mixing and dispensing.
  • User selectable dispensing limit
  • Chemically inert, non-corrosive PP conical bottom tank
  • Medical grade Stainless steel (316 L/304) stand
  • Compatible to both Concentrated as well as Powder
  • bicarbonate.
  • Uniform, Smooth agitation mechanism.
  • Complete disinfection with chemical with time stamp.
  • Sensors for Overflow, Flow , Door open/close.
  • Audio and Visual alarms on completion and error Mixing:
  • Tuscano's Bicarbonate Mixer is designed exclusively for
  • Hemodialysis treatment. It provides accurate, fully
  • automatized mixing in minutes times.
  • Control system operates on 230 V AC 50 Hz power supply.
  • Time stamped preparation and drain unused solution
  • based on user set time limit.
  • User friendly User interface : 4 keys Keypad and LCD
  • display.
  • Mixing and Dispensing by simple key press.
  • Geared DC motor facilitates smooth ,uniform mixing.
  • All inlet and outlet valves accompanied by manual override
  • Ball valves.
Read More...
